PHOT-XIIs DC Dental X-Ray

PHOT-XIIs DC Dental X-Ray

$0.00
$0.00
Sold out
Shipping calculated at checkout.
Belmonts High Frequency Technology allows for:

  • High resolution image by a small focal spot

  • Reduced skin dosage with optimum radiation level for every...

23 people are viewing this right now
SKU: CHS-6TBM-XXX
Brand: Belmont
Category: X-Ray

Free shipping available on all orders over $400 (excluding equipment). We ship all NZ orders within 1-10 business days.

View full product details
Belmonts High Frequency Technology allows for:

  • High resolution image by a small focal spot

  • Reduced skin dosage with optimum radiation level for every diagnostic need

  • Easy to position compact tube head

  • Ideal matching for digital system


Features

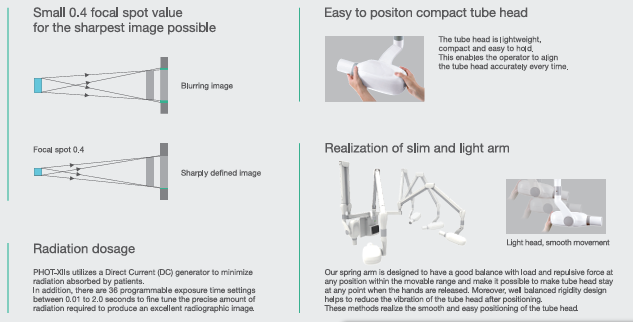

  • Small Focal Spot

  • Small 0.4 focal spot value for the sharpest image possible


Radiation Dosage
PHOT-XIIS utilises a Direct Current (DC) generator to minimise radiation absorbed by patients.

In addition; there are 36 programmable exposure time settings between 0.01 to 2.0 seconds to fine tune the precise amount of radiation required to produce an excellent radiographic image.

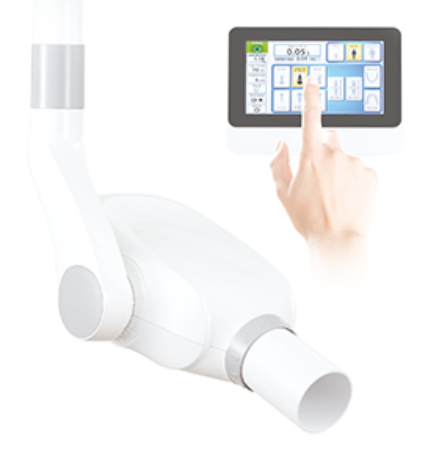

Easy to position compact tube head
The tube head is lightweight; compact and easy to hold. This enables the operator to align the tube head accurately every time.

Realisation of slim and light arm
The spring arm is designed to have a good balance with load and replusive force at any position within the moveable range and make it possible to make tube head stay at any point when the hands are released. Moreover; well balanced rigidity design helps to reduce the vibration of the tube head after positioning.

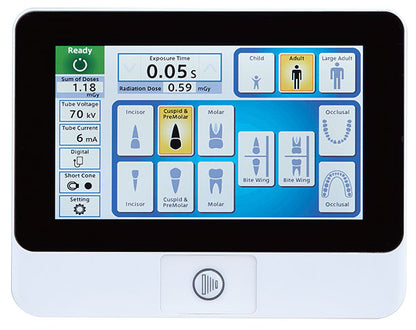

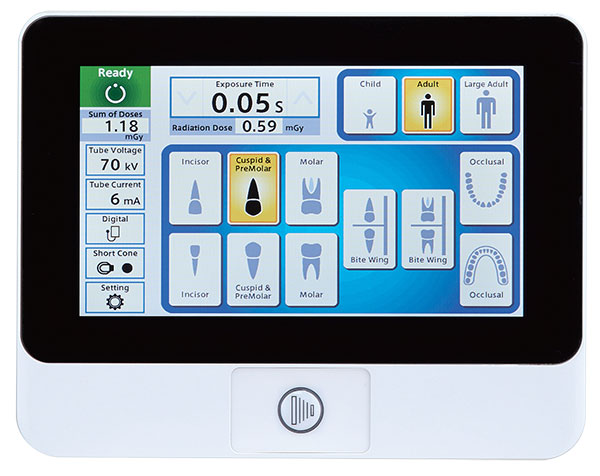

Optimum radiation level for every patient
The operation is simple.
Select patient type and tooth type; then press the exposure switch.
The exposure time can also be adjusted manually. After the exposure; the radiation output can be displayed in the window.

Tube voltage selection
PHOTO-XIIS provides 2 tube voltage settings to optimise imaging for specific purposes:

[60 kV Setting]

  • Setting provides balanced contrast for general caries diagnostic imaging.

  • Setting provides excellent definition and detail for periapical and bone structure diagnostic imaging.


[70 kV Setting]

  • Setting provides excellent diagnostic imaging for periodontal disease examination.

  • Setting provides a wider latitude and longer gray scale.


Five types of installations

  • WK Wall mounted type

  • RK Room type with stool

  • FM Mobile type with castors

  • FK Floor mounted. Sub-controller can be installed on the pole (FK1) or on the wall (FK2)

  • CK Ceiling mounted type. Dental light can be mounted on the pole as an option (CKL Type)


Options

  • Horizontal arm length of WK Type is selectable : 300mm; 500mm; 650mm; 800mm (standard) and 1000mm

  • Ceiling pole length of CK/CKL Type is selectable: 600 - 1350mm

  • Long cone (Short cone + Long cone collimator) for paralleling technique

  • Rectangual collimator

  • Hand exposure switch with coiled cord (Option for WK; RK; FK2 and CK. Standard for FM and FK1).
